The instruments uses a D2 (deuterium) lamp and a WI (halogen) lamp as the light source.
The D2 (deuterium) lamp and the WI (halogen) lamp are used for ultraviolet region (190 nm – light source switching wavelength) and visible/near-infrared region (light source switching wavelength – 1100 nm), respectively.
The closer the lamp service life comes to its end, the smaller the light intensity of each lamp, and the greater the noise in photometric value.
The D2 (deuterium) lamp and the WI (halogen) lamp are used for ultraviolet region (190 nm – light source switching wavelength) and visible/near-infrared region (light source switching wavelength – 1100 nm), respectively.
The closer the lamp service life comes to its end, the smaller the light intensity of each lamp, and the greater the noise in photometric value.
« Lamp Replacement Procedure »
WARNING:
• Before replacing the lamp, turn "OFF" the power and remove the power plug from the outlet.
If the instruments is powered, it may result in fire, electric shock, and instrument malfunction.
Do NOT turn "ON" the instrument while the light source compartment is visually exposed. Ultraviolet light may be generated and cause a serious health hazard.
If the instruments is powered, it may result in fire, electric shock, and instrument malfunction.
Do NOT turn "ON" the instrument while the light source compartment is visually exposed. Ultraviolet light may be generated and cause a serious health hazard.
• Before replacing the lamp, turn "OFF" the power and leave it until the lamp cools down sufficiently.
If you touch a hot lamp, it may result in a major burn.
If you touch a hot lamp, it may result in a major burn.
CAUTION:
• When removing and installing the light source compartment cover, avoid hitting the protrusion on the top of the D2 (deuterium) lamp against the back of the cover.
Doing so may cause a vacuum leak in the lamp tube.
Doing so may cause a vacuum leak in the lamp tube.
• Wear protective gloves when replacing the lamp.
If fingerprints are left on the glass of the lamp, they will burn onto the bulb when the light source gets hot and the amount of light may decrease.
• Be careful not to break the lamp.
• When replacing the WI (halogen) lamp, cover the D2 (deuterium) lamp with a clean paper or cloth or remove the D2 lamp before the work.
If you touch the D2 (deuterium) lamp and fingerprints are left on the glass of the lamp, they will burn onto the bulb when the light source gets hot and the amount of light may decrease.
• After inserting the WI (halogen) lamp into the socket, Do NOT forcedly move it to right and left or up and down.
The connection part between the pin and glass may be damaged, which makes it impossible for the lamp to illuminate.
If fingerprints are left on the glass of the lamp, they will burn onto the bulb when the light source gets hot and the amount of light may decrease.
• Be careful not to break the lamp.
• When replacing the WI (halogen) lamp, cover the D2 (deuterium) lamp with a clean paper or cloth or remove the D2 lamp before the work.
If you touch the D2 (deuterium) lamp and fingerprints are left on the glass of the lamp, they will burn onto the bulb when the light source gets hot and the amount of light may decrease.
• After inserting the WI (halogen) lamp into the socket, Do NOT forcedly move it to right and left or up and down.
The connection part between the pin and glass may be damaged, which makes it impossible for the lamp to illuminate.
1. Removing the light source compartment cover
1) Using a Phillips screwdriver, loosen the set screw located on the side of the light source compartment cover.

2) Lift up the light source compartment cover to release the notch from the set screw.
3) While sliding the light source compartment cover to the arrow direction, remove it from the main body.


(1) D2 lamp, (2) WI lamp
2. WI (halogen) lamp replacement
1) Cover the D2 (deuterium) lamp with a clean paper or cloth or remove the D2 lamp.
CAUTION: If you touch the D2 (deuterium) lamp and fingerprints are left on the glass of the lamp, they will burn onto the bulb when the light source gets hot and the amount of light may decrease.
2) Wear protective gloves.
3) Pull out the WI (halogen) lamp from the socket.

4) Insert a new WI (halogen) lamp into the socket.

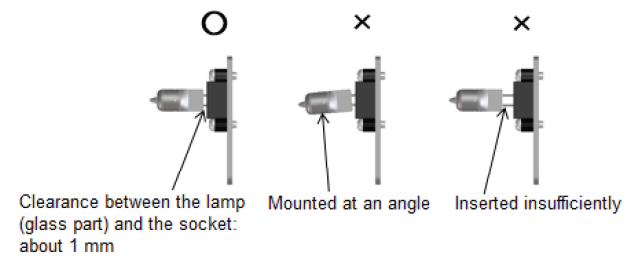

Push it forward until the pins reaches the back of the socket and stop.

HINT: The two pins of the WI lamp do not have polarity. Therefore, you can install it regardless of its orientation.
5) Reinstall the D2 (deuterium) lamp to the original position.
When you covered the lamp with a paper or a cloth, make sure that it is not left in the light source compartment.
When you covered the lamp with a paper or a cloth, make sure that it is not left in the light source compartment.
6) Install the light source compartment cover by the reverse procedure of that described in "Removing the light source compartment".
7) Insert the power plug into the outlet, and turn "ON" the power (Press the "|" side on the switch).
9) Check that all items are initialized successfully.
10) When the Mode menu is displayed, reset the accumulated lighting time of the WI lamp.
3. D2 (deuterium) lamp replacement
1) Wear protective gloves.。
2) Slowly extract the D2 (deuterium) lamp upward to remove it from the socket.
2) Slowly extract the D2 (deuterium) lamp upward to remove it from the socket.

NOTE: Hold the plastic part at the lower part of the lamp to avoid touching the beam port.
3) Insert a new D2 (deuterium) lamp into the socket.

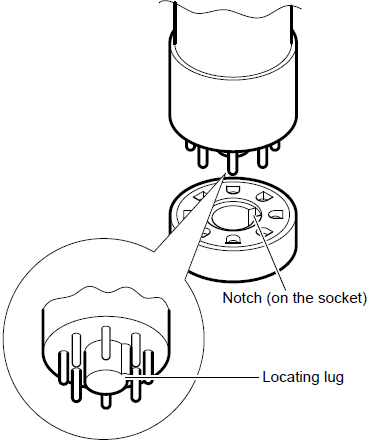

Fit the locating lug at the bottom of the lamp to the socket notch and push it as far as it goes.
4) Install the light source compartment cover by the reverse procedure of that described in "Removing the light source compartment cover".
5) Insert the power plug into the outlet, and turn "ON" the power (Press the "|" side on the switch).
6) Check that all items are initialized successfully.
7) When the Mode menu is displayed, reset the accumulated lighting time of the D2 lamp.
4. Checking and Resetting the Lamp Lighting Time (UV-1900 series)

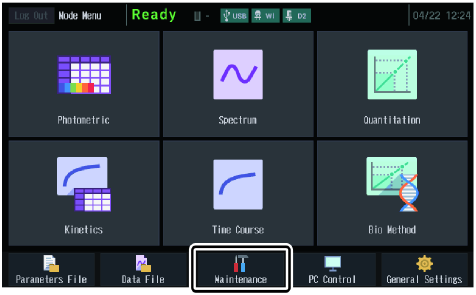

1) Tap [Maintenance].
The lamp lighting time is displayed on the right of the screen.
The upper one is the lighting time of the D2 (deuterium) lamp; the lower one is that of the WI (halogen) lamp.
The upper one is the lighting time of the D2 (deuterium) lamp; the lower one is that of the WI (halogen) lamp.

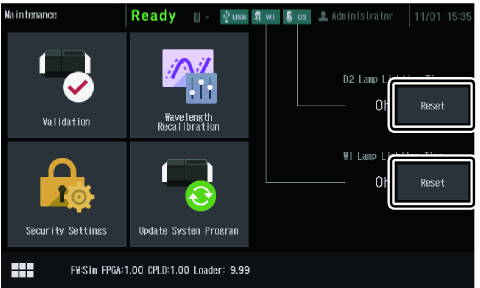

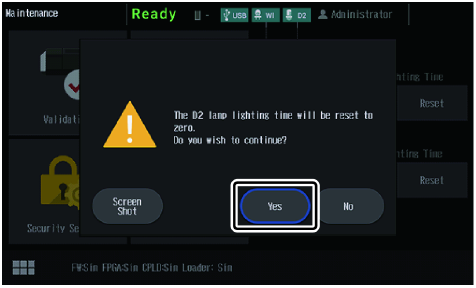

3) Tap [Reset] to reset the lamp lighting time.
4) Tap [Yes].

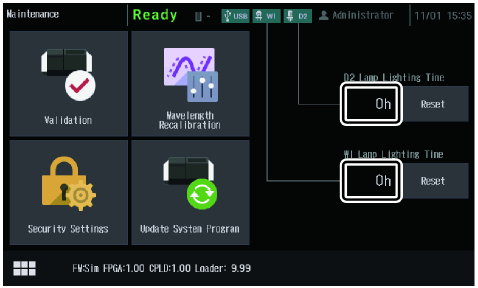

The lighting time becomes [0h].
4. Checking and Resetting the Lamp Lighting Time (UV-1800 series)

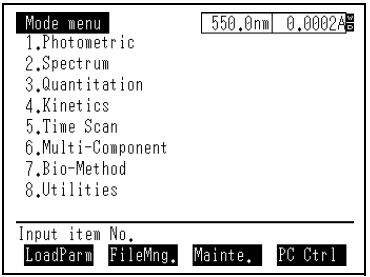

1) Press the (F3)[Mainte.] key in the Mode menu screen

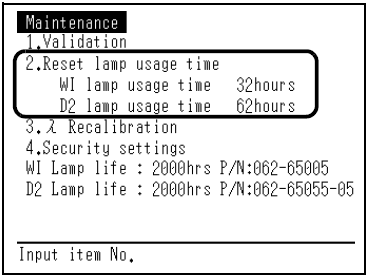

2) The Maintenance screen appears and the accumulated usage time of the light source lamps are displayed.
3) Press the (2)[2. Reset lamp usage time] key in the Maintenance screen
4) The window for selecting the lamp whose usage is to be reset appears.
Use the [ ↑ ][ ↓ ] keys to move the cursor to [D2 lamp], and press the [ENTER] key.
Use the [ ↑ ][ ↓ ] keys to move the cursor to [D2 lamp], and press the [ENTER] key.

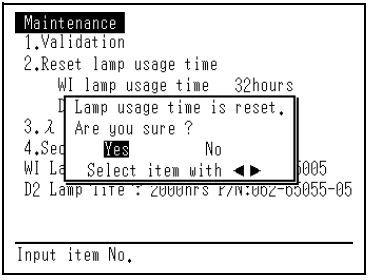

5) Use the [←][→] keys to select [Yes], and press the [ENTER] key. The lamp usage time will be reset.
