(FTIR) Dry Indicator, Humidity Lamp - IRAffinity-1 series

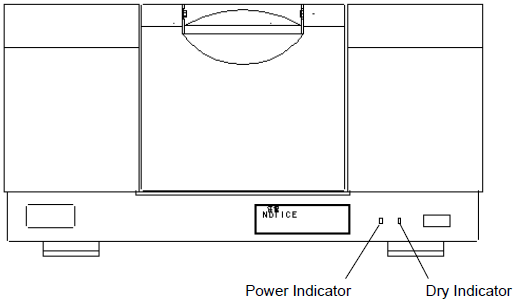

IRAffinity-1 series has two Indicators - the Power indicator (green) and the Dry indicator (orange) - on the front panel. The Power indicator lights up when the switch is turned on. The Dry indicator lights up when humidity in the interferometer is low enough.
The IRAffinity-1S keeps the inside of the interferometer at low humidity by driving the dehumidifier and monitors humidity inside of the interferometer, even while the IRAffinity-1S is not used. Accordingly, always let the power plug of the IRAffinity-1 series be connected to the AC power supply to keep the power supply. Confirm that the orange Dry indicator is lit.



If the Dry indicator is not lit, please confirm following checkpoints.
1. AC for IRAffinity-1S is correctly the connected to AC line.
2. The AC line is correctly alive.



If the Dry indicator is not lit even if above points are not troubled, it may be caused by hardware trouble in the IRAffinity-1 series.
In this case;
1. Unplug the AC power cord of IRAffinity-1 series immediately, and do not use IRAffinity-1 series.

2. Open the top cover and install NEW SILICA GELs immediately.

  Click here for Replacement of Silica Gels.

  NOTE: The indicator silica gel is blue, purple, and dark purple. If the color of the indicator silica gel turns pale red, including the area around it, replace it with a new one.
3. Then contact a Shimadzu sales or service representative.
