Although the IRTracer-100 has a built-in dehumidifier, silica gel is used also to cope with failure of the dehumidifier and power interruption. Replace the silica gel as follows.
NOTE: Be sure to turn the start switch off if work is being done.
NOTE: Be sure to turn the start switch off if work is being done.
1. Open the top cover of the instrument.

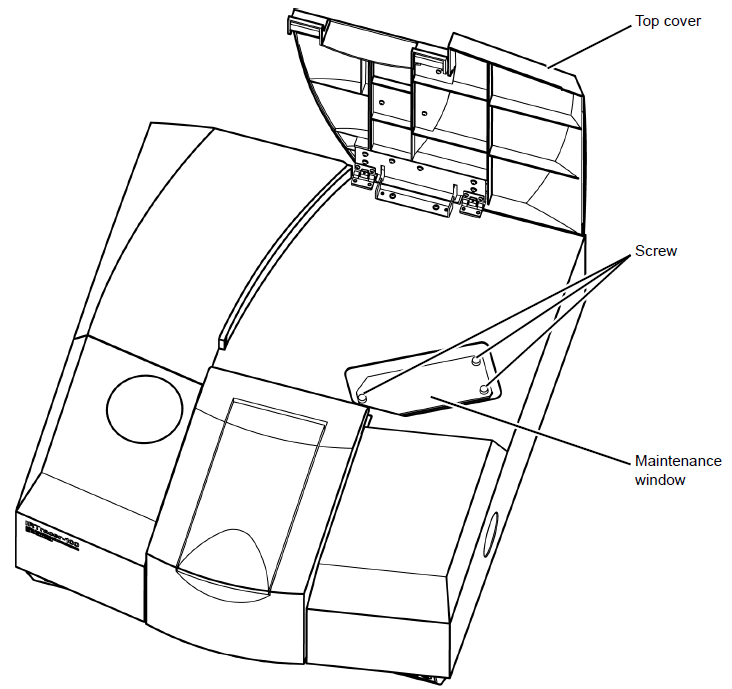

When the top cover is open, the interferometer case cover can be seen inside. The maintenance window is the lid at the front right side of the instrument.
When the top cover is open, the interferometer case cover can be seen inside. The maintenance window is the lid at the front right side of the instrument.
2. Remove the 3 screws securing the maintenance window, then open the lid.

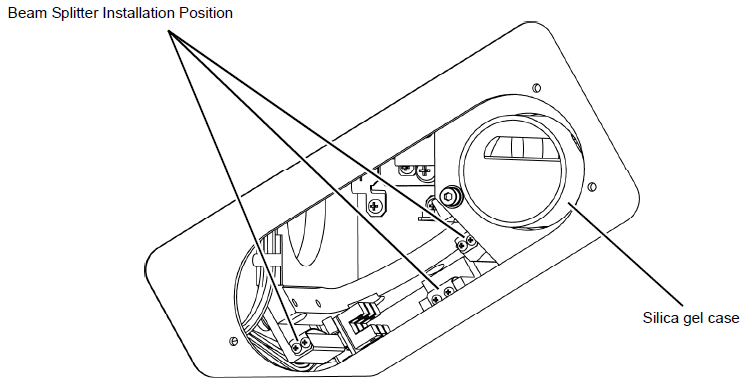

When the lid is opened, the silica gel case and the beam splitter installation position can be seen.
When the lid is opened, the silica gel case and the beam splitter installation position can be seen.
3. Remove the silica gel case by pulling upward.
4. Replace all of the silica gel with new gel.
Use 6 x 10g packs.
5. Attach the silica gel case.
6. Close the maintenance window and top cover to their original positions.
4. Replace all of the silica gel with new gel.
Use 6 x 10g packs.
5. Attach the silica gel case.
6. Close the maintenance window and top cover to their original positions.
