HPGE = High Pressure Gradient Elution i.e. Binary high pressure mixing.
LPGE = Low Pressure Gradient Elution i.e. via Quat. valve.
HPGE Mixer Options
| 228-72652-41 | Mixer MR 20 µl (+ CMD cable required) |
| 228-72652-42 | Mixer MR 40 µl ( + CMD cable required) |
| 228-72652-43 | Mixer MR 100 µl ( + CMD cable required) |
| 228-72652-44 | Mixer MR 180 µl *2 ( + CMD cable required) |
| 228-45209-41 | 20µl Micro Reactor |
| 228-45209-42 | 40µl Micro Reactor |
| 228-45209-43 | 100µl Micro Reactor |
| 228-45209-44 | 180µl Micro Reactor II *2 |
| 2 recommended for mobile phase with ultra-violet absorption ingredients such as TFA |
| UHPLC LPGE Mixer with mixer recognition device | |
| 228-65020-41 | MR 40 μl LPGE*5(+ CMD cable required) |
| 228-72653-42 | MR 300 μl LPGE (+ CMD cable required) |
| UHPLC LPGE Mixer no mixer recognition device | |
| 228-45210-41 | MR 40 μl LPGE |
| 228-45210-42 | MR 300 μl LPGE |
| 5 includes piping kit – no need to add 228-70254-44 ! |
UHPLC Inert Mixers
| Solvent Mixing | with mixer recognition device |
| 228-65081-41 | Mixer MR 20 µl INERT (+ CMD cable required) |
| 228-65081-42 | Mixer MR 180 µl INERT (+ CMD cable required) |
| LPGE Mixing | with mixer recognition device |
| 228-65020-43 | Installation kit, MR 40 µl INERT *1 (+ CMD cable required) |
| 228-65081-43 | Mixer MR 40 µl LPGE INERT (+ CMD cable required) |
| 228-65081-44 | Mixer MR 300 µl LPGE INERT (+ CMD cable required) |
| 1 includes tubing kit D, LPGE ID0.1 |
Semi-Prep and Preparative Mixer Options
| Solvent Mixing | |
| 228-20601-91 | Mixer for anal. LC (4.5 ml) |
| 228-20600-91 | Mixer for prep. LC (14 ml) |
Extra options for LC-2050 i-Series
| 228-57313-41 | 780uL Mixer kit2 |
| 228-57313-42 | 2mL Mixer kit2 |
| 2recommended for mobile phase with ultra-violet absorption ingredients such as TFA, also possible for LC-2060 but not recommended |

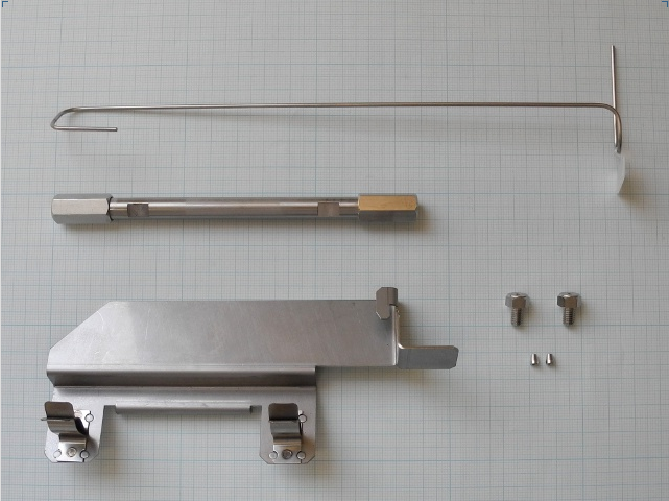

Example image for 228-57313-41
