Nexera UC (SFC) piping kits for Analytical SFC

Here are the piping kit options for installing the Nexera UC. Use the correct combination to support your bespoke installation.

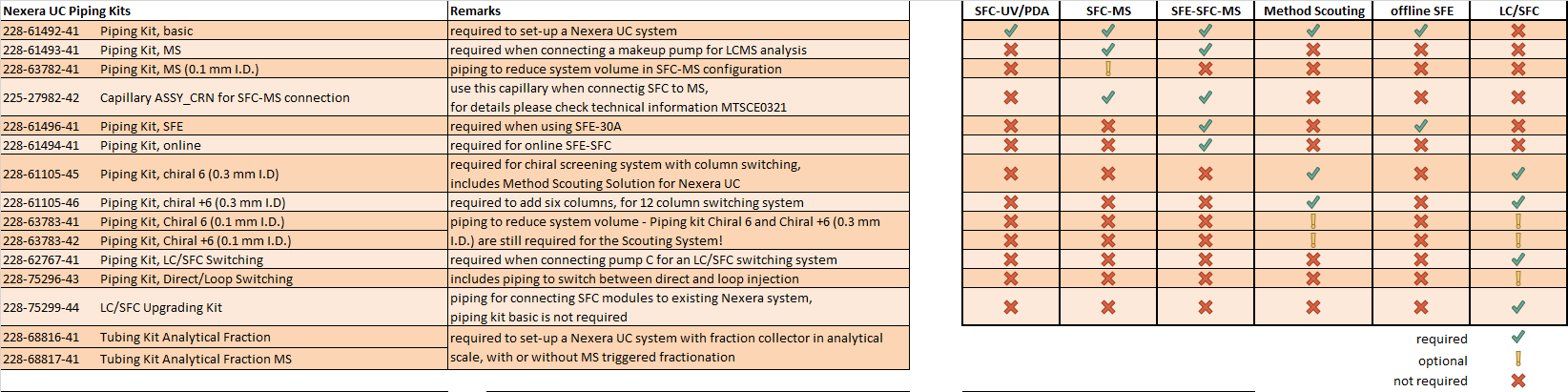

Nexera UC Piping Kits		Remarks
228-61492-41	Piping Kit, basic	required to set-up a Nexera UC system
228-61493-41	Piping Kit, MS	required when connecting a makeup pump for LCMS analysis
228-63782-41	Piping Kit, MS (0.1 mm I.D.)	piping to reduce system volume in SFC-MS configuration
225-27982-42	Capillary ASSY_CRN for SFC-MS connection	use this capillary when connecting SFC to MS, for details please check technical information MTSCE0321
228-61496-41	Piping Kit, SFE	required when using SFE-30A
228-61494-41	Piping Kit, online	required for online SFE-SFC
228-61105-45	Piping Kit, chiral 6 (0.3 mm I.D)	required for chiral screening system with column switching, includes Method Scouting Solution for Nexera UC
228-61105-46	Piping Kit, chiral +6 (0.3 mm I.D)	required to add six columns, for 12 column switching system
228-63783-41	Piping Kit, Chiral 6 (0.1 mm I.D.)	piping to reduce system volume - Piping kit Chiral 6 and Chiral +6 (0.3 mm I.D.) are still required for the Scouting System!
228-63783-42	Piping Kit, Chiral +6 (0.1 mm I.D.)
228-62767-41	Piping Kit, LC/SFC Switching	required when connecting pump C for an LC/SFC switching system
228-75296-43	Piping Kit, Direct/Loop Switching	includes piping to switch between direct and loop injection
228-75299-44	LC/SFC Upgrading Kit	piping for connecting SFC modules to existing Nexera system, piping kit basic is not required
228-68816-41	Tubing Kit Analytical Fraction	required to set-up a Nexera UC system with fraction collector in analytical scale, with or without MS triggered fractionation
228-68817-41	Tubing Kit Analytical Fraction MS
