(GCMS) EI Ion Source Replacement and Rinsing Procedure - GCMS-QP2010 Plus/Ultra, QP2020,GCMS-TQ series

For GCMS-QP2010 Plus, GCMS-QP2010 Ultra, GCMS-QP2020,GCMS-TQ series

Parts Number: 225-17697-91  BOX,EI+ (A P mark is engraved on the side of the box.)

Parts Number: 225-31015-91  Smart EI/CI Ion Source (A Q mark is engraved on the side of the box.)

(Smart EI/CI ion source box specifically for the GCMS-QP2010 Plus/Ultra, GCMS-QP2020(NX), GCMS-TQ Series)

Parts Number: 225-17659-91 EI REPELLER ASSY

Parts Number: 225-01068  BUSH FOR INSULATOR

Parts Number: 085-35124-03 ABRASIVE CLOTH,7448



CAUTION: Wear safety glasses.



1. Be sure to perform 1) to 3) before starting maintenance.
  1) Automatically stop the GC/MS. Wait until the "system shutdown" message appears.
  2) Close GCMSsolution.
  3) Turn the POWER switch on the rear of the instrument OFF.





2. Turn the knob to open the front door.

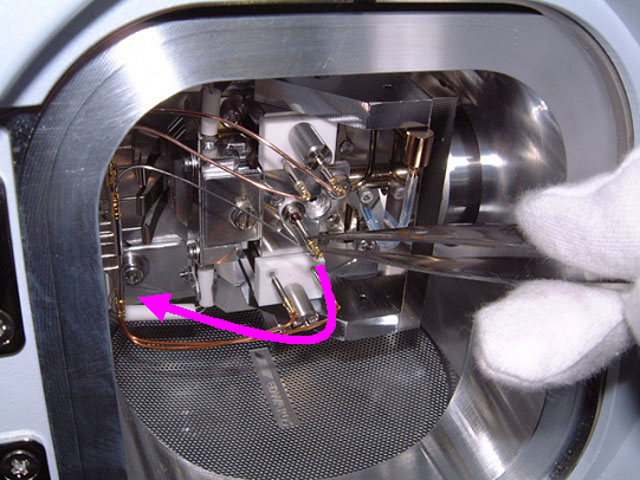

3. Gently draw out the L1 socket using the tweezers to bring it to the left side.
  CAUTION: Wear clean gloves when performing maintenance. Be sure to wipe off any dirt from the tools used for maintenance using gauze moistened with acetone.





4. Loosen the interface cup screw one full turn using the hexagon screwdriver.





5. Insert the box replacement jig into the specified location and screw it in.




6. Loosen the screws (two locations: enclosed parts in the photo on the left) one full turn using the regular screwdriver.





7. View of Loosening Screw Using Regular Screwdriver





8. Grip the interface cup with the tweezers, move the cup to the right by about 5 mm and then press down.



  *How to Attach the Interface Cup

    a) Grip the interface cup with the tweezers and move it about 5 mm to the right.

    Press the interface cup down so that its notch (white part) slides into the groove.
    NOTE: The photo shows a view from an angle to the upper left, with the ion source and filament removed, to make it easier to distinguish the interface cup.



  b) After Attaching the Interface Cup





9. Fully loosen the screws (two locations) using the regular screwdriver while holding the box replacement jig with your hand.




10. Hold the box replacement jig and remove the ion source box assembly.





11. After Removing Ion Source Box Assembly





12. After Removing Box Replacement Jig and Ion Source Box Assem
  NOTE: After removing parts, place them on gauze to prevent them from becoming dirty.

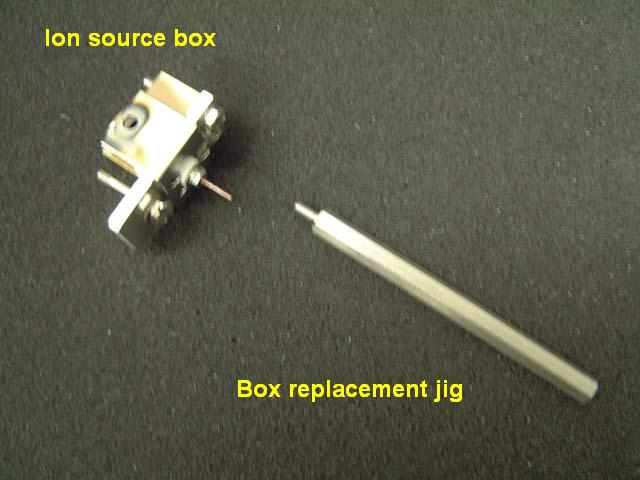

13. Remove the box replacement jig.
  (left: ion source box, right: box replacement jig)

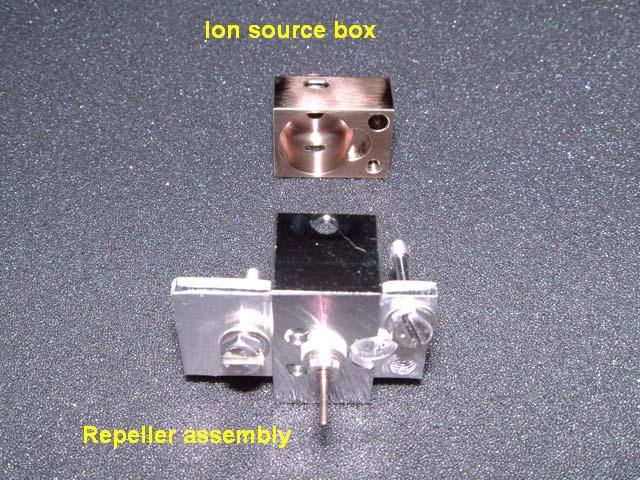

14. Separate the repeller assembly from the ion source box.





15. Disassemble the repeller assembly using the box screwdriver.




16. Repeller Nut Loosened Using the Box Screwdriver
  After the nut becomes loose, loosen completely by hand.





17. Disassembled Repeller Assembly

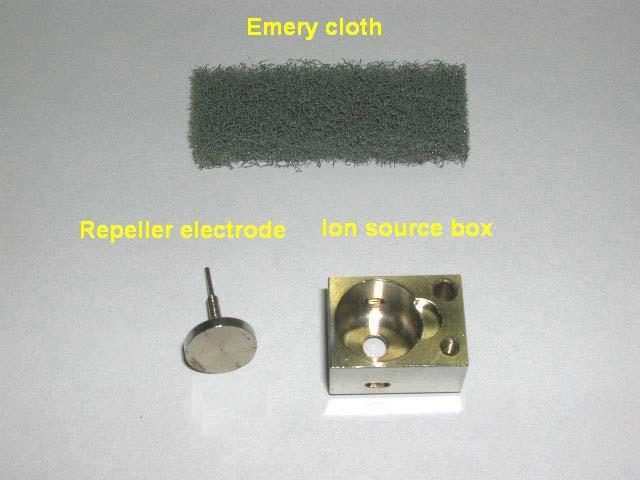

18. Clean the ion source box and repeller electrode with emery cloth.
  NOTE: Cut the emery cloth to an appropriate size with scissors before use.





19. Polish dirty locations with emery cloth, and blow off powder from the surface using clean compressed air, for example.
  [Ion Source Box]
  (1) Overview of inside
  (2) Around electron entrance (two locations)



  [Repeller Electrode]
  (1) Flat section
  (2) Side section





20. Put the ion source box and repeller into the beaker.
  Pour in an appropriate amount of acetone, and perform ultrasonic cleaning for 10 minutes or more.
  NOTE: Do not rinse the insulator bush. Replace it with a new one if cracked.

  NOTE: Thoroughly rinse with clean acetone after ultrasonic cleaning.





21. Remove the ion source box and repeller electrode from the beaker, and bake for 1 hour at 400 °C.
  NOTE: Prepare a commercially available electrical furnace.
  NOTE: Take care when handling the ion source box and repeller electrode because they are hot. Allow them to cool down sufficiently before handling them.





22. Place the (1) repeller electrode on top of the ion source box.
  Insert parts in the following order: (2) insulator→ (3) spacer→ (4) plate.
  Insert parts in the following order: (5) Shield→ (6) Insulator→ (7) Washer→ (8) Spring Washer→ (9) Nut




23. Lightly tighten the nut down to its root by hand while holding down the plate.





24. Align the small hole in the spacer with the center of the plate hole using the tweezers.





25. Fit the repeller assembly into the ion source box.





26. Make sure that the plate hole is not out of position.
  Carefully tighten the nut of the repeller assembly with the box screwdriver.
  NOTE: Exerting excessive force might cause the repeller electrode to warp or the insulator to crack.





27. Install the box replacement jig.
  NOTE: The box replacement jig can be fitted in easily by drawing out the two screws from the plate as shown in the photo.





28. Hold the box replacement jig and fit the ion source box assembly into the instrument.





29. Tighten the screws (two locations) alternately with the regular screwdriver.
  After tightening, loosen one full turn.





30. Unhook the interface cup using the tweezers, and press it against the ion source box.
  Hold the box replacement jig, and lightly shaking the jig up and down, adjust the interface cup so that it is completely fitted in.





31. Tighten the screws (two locations) with the regular screwdriver starting with the screw on the left side.
  Remove the box replacement jig.





32. Tighten the interface cup screw using the hexagon screwdriver.





33. Install the L1 socket using the tweezers.





34. Perform final checks. Make sure that items (1) to (4) below have been performed correctly.
  Remedy any problems.
  (1) The L1 socket must be fixed firmly to the sockets of the repeller electrodes. (yellow ■ arrow)
  (2) The wiring around the ion source must not be short-circuiting. (pink ■ enclosed frame)
  (3) The interface cup must be completely fitted into the ion source box. (blue ■ enclosed frame)



  (4) There must be no dirt on the O-ring (pink ■ arrow) or O-ring contacting surface (blue ■ arrow) of the vacuum container.





35. Close the front door, and completely turn the knob as far as it can go.





36. Turn the POWER switch on the rear of the instrument ON to start up the instrument.





37. <To Change the Type of Ion Souce>
  Start up the [GCMS Real Time Analysis] program.

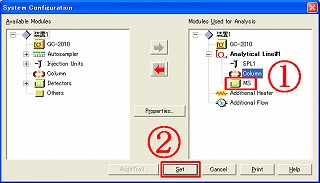

  (1) Either click the [System Configuration] icon on the Analysis assistant bar, or click [Instrument] on the toolbar and click [System Configuration].
  (2) Either double-click [MS] at [Modules User for Analysis] in the [System Configuration] sub-window, or select [MS] and click the [Properties] button.

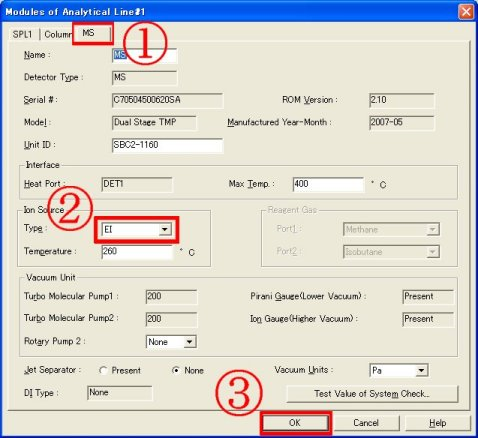

38. (1) Click the [MS] tab to change the screen to the MS system configuration tab page.
  (2) Click the arrow to the right of [Type] at [Ion Source], and select "EI".For Smart EI/CI ion source, select the [Smart QCI] checkbox.

  (3) After setting, click the [OK] button. Click the [Set] button in the [System Configuration] sub-window to finish system configuration.

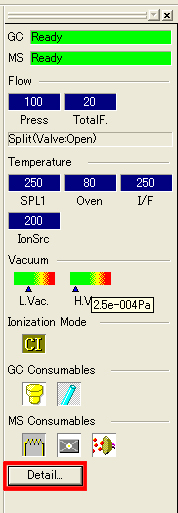

39. Click [Detail] at the instrument monitor.

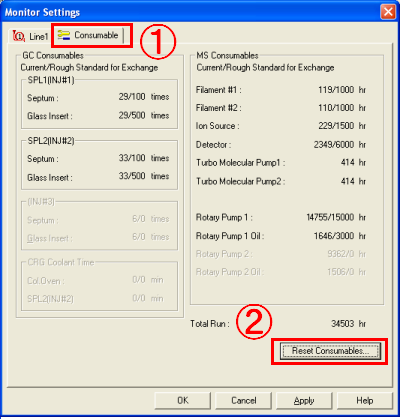

40. Click the [Consumable] tab in the [Monitor Settings] sub-window. Note down the operation time at [Ion Source].

  Click the [Reset Consumables] button.

  NOTE: The ion source operation time is accumulated regardless of the type of ion source.
  We recommend noting down the ion source operation time if the removed ion source is used next without being rinsed.

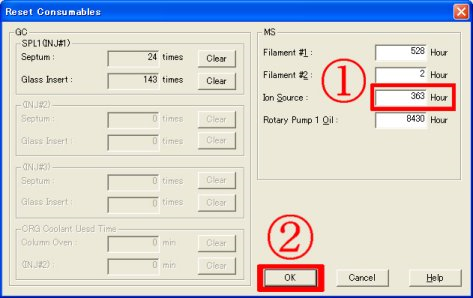

41. Enter "0" for the time at [Ion Source] in the [Reset Consumables] sub-window.
  Click the [OK] button. Click [OK] in the [Monitor Settings] sub-window to close it.
