DetAPCn makeup control irregularity[Error Code:2100 2101 2102 2103 2104 2105 2106 2107 2108 2109 2110 2111]

Component does not operate correctly.

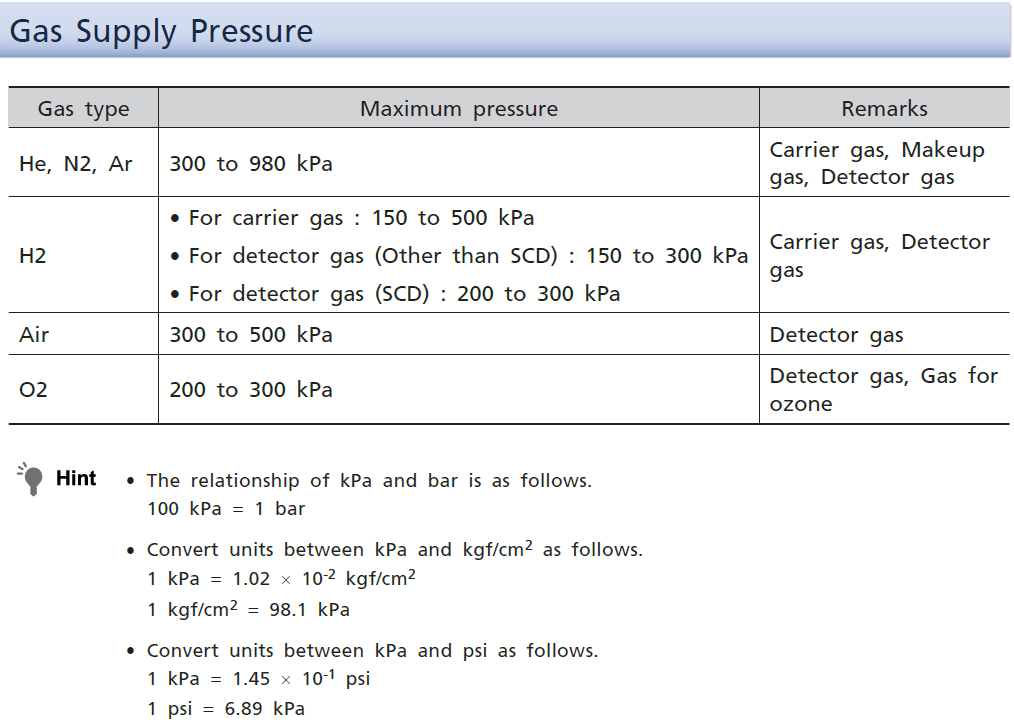

• Check that the supply pressure to each unit is within the range below.

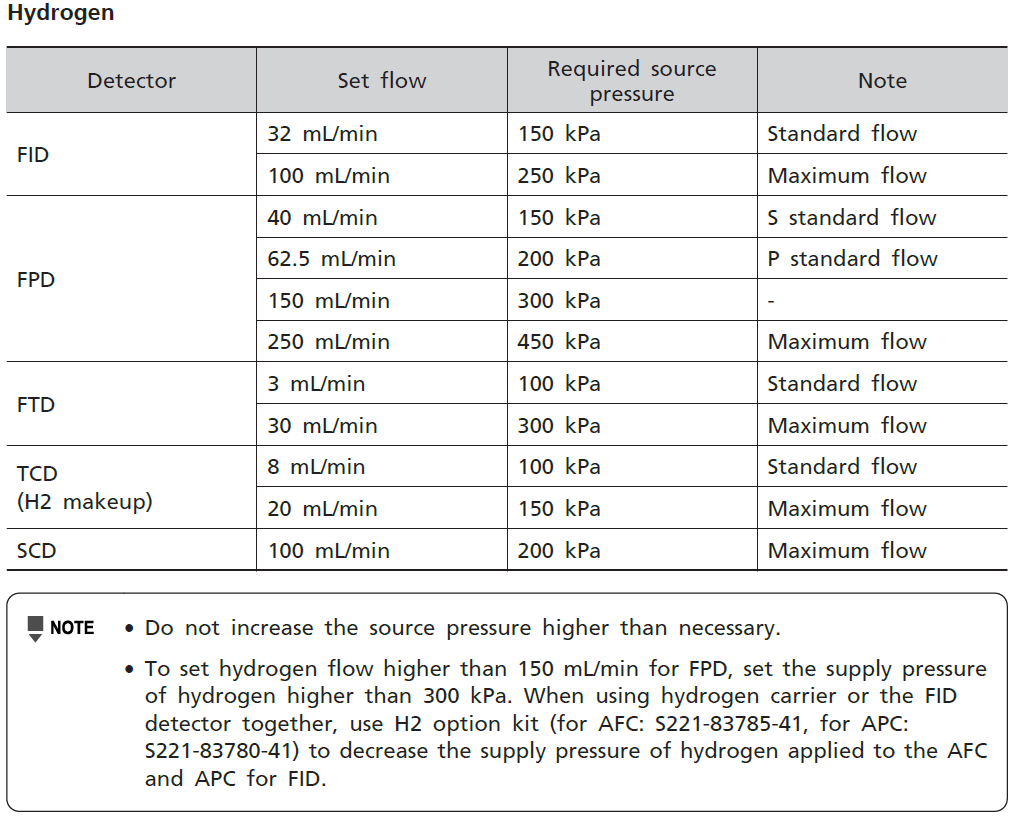

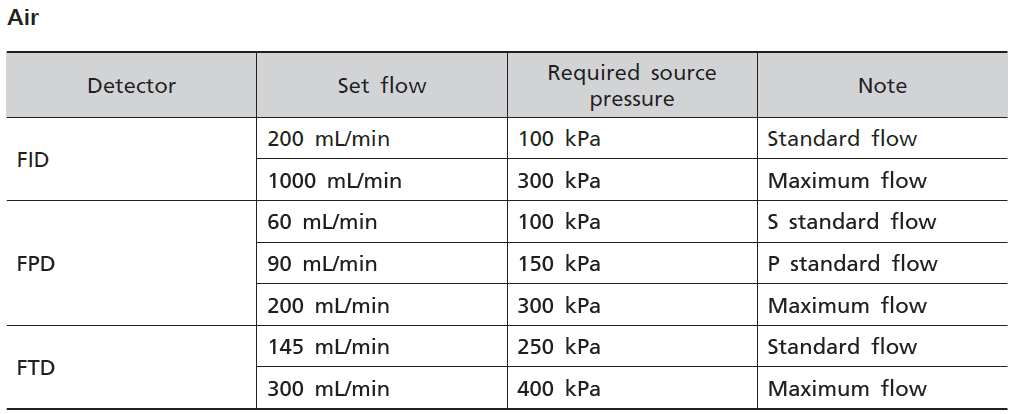

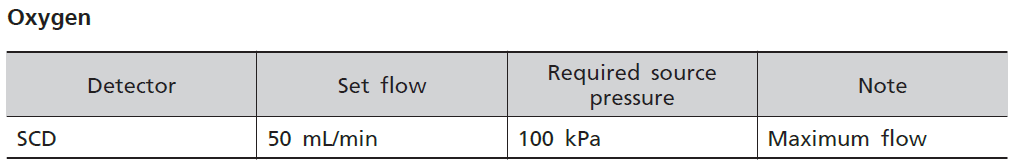

• Check that the supply pressure is sufficient for the gas of each unit to flow.
• Check that the gas supply pressure is stable.

If the error appears repeatedly even after checking the above, turn off the main power of the instrument, stop gas supply, and contact your Shimadzu sales/service representative.
