CARm AFC control irregularity [Error Code:2134 2135 2136 2137 2208 2209 2210 2211]

Each unit does not operate correctly.

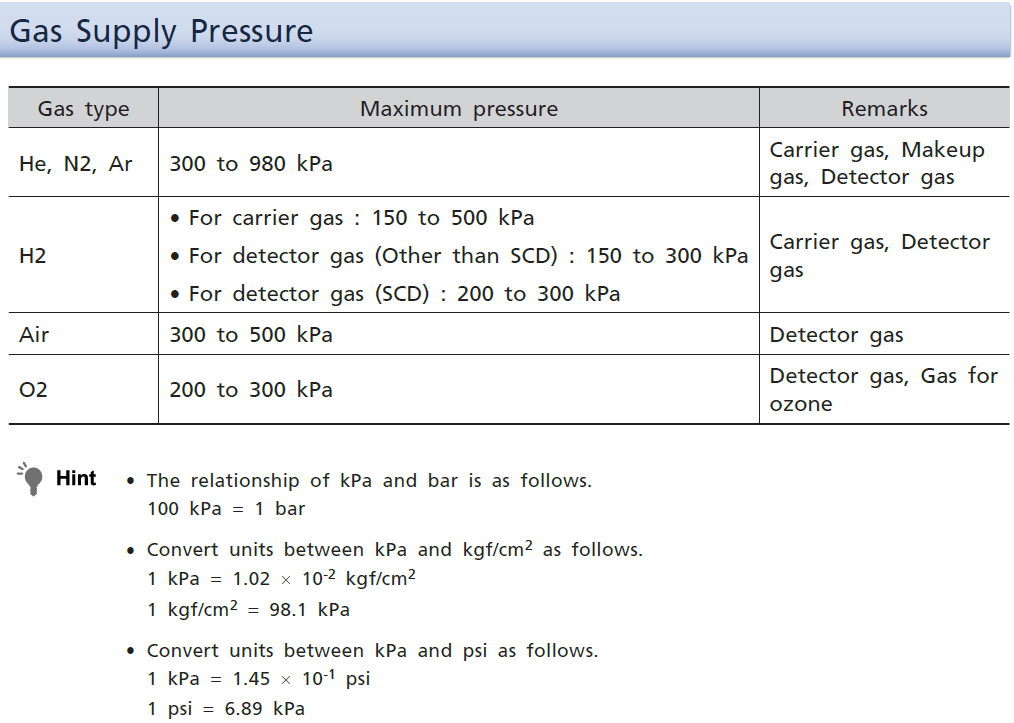

• Check that the supply pressure to the AFC is within the range below.



• Check that the supply pressure is sufficient for the AFC gas to flow.
• Check that the gas supply pressure is stable.
• If the error appears repeatedly even after checking the above, turn off the main power of the instrument, stop gas supply, and contact your Shimadzu sales/service representative.
