Acquire Files from Other Instruments (LabSolutions DB/CS)

When multiple instruments exist for the same project, files can be acquired from other instruments, and files acquired on the instrument currently in use can be used.

1. Click [Get the file from Other Instrument] on the menu displayed by right-clicking on the [File View] area in the [Data Explorer] sub-window for the instrument currently in use.

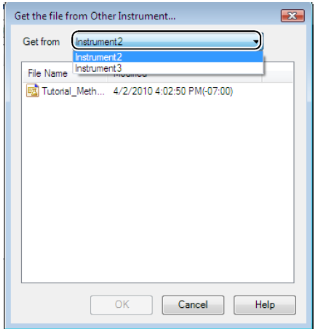

2. Select the instrument to acquire the file from.

3. Select the file to acquire, and click [OK].
  Multiple files also can be selected and acquired.
